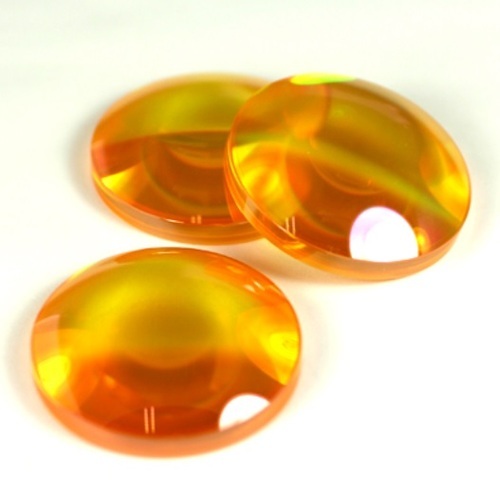

Zinc selenide ZnSe biconvex lens
PRODUCT CATEGORIES
- Zinc selenide (ZnSe) lens has low absorption coefficient and high thermal expansion coefficient. It is usually used as the base material of reflector and beam splitter in high-power CO2 laser system.
- As the zinc selenide (ZnSe) lens is relatively soft (Knoop hardness is 120) and easy to scratch, it is not recommended to be used in harsh environment. Pay attention to uniform force when holding and cleaning, so that you could wear finger covers or hands.
Technical parameters
| Items | Parameters |
|---|---|
| Material | zinc selenide (ZnSe) |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-200mm ± 0.1mm |
| Center thickness tolerance | ± 0.1mm |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 4 |
| Surface quality | 60/40 |
| Effective caliber | ≥80% |
| Coating | IR AR Coating 8-12μm or according to custom requirements |

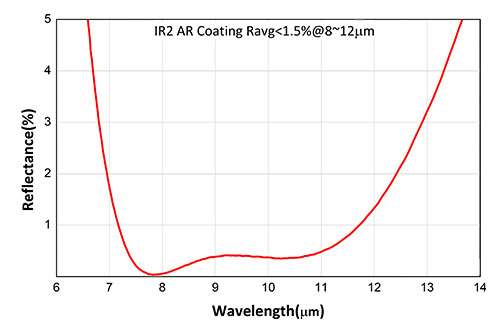

spectral curve

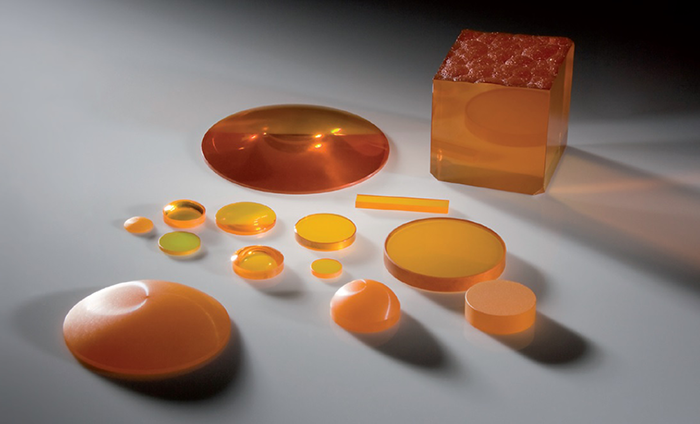

In addition, we have thousands of stock of K9 plano convex lens, biconvex lens, plano concave lens, biconvex lens, meniscus lens and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
For details, please consult:
