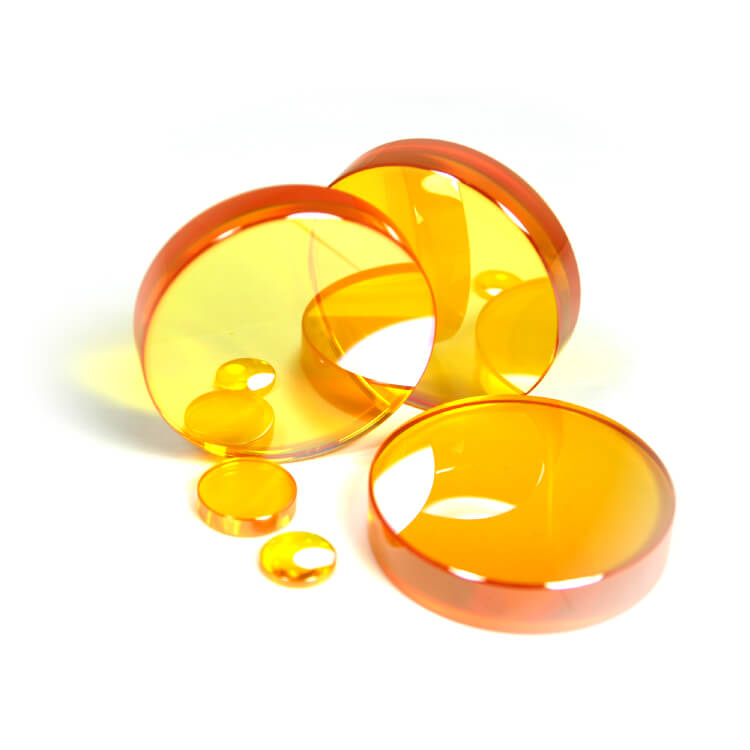

Zinc selenide ZnSe biconcave lens
PRODUCT CATEGORIES
- Biconcave lenses are mainly used in imaging systems to collect and focus light. They are widely used in transmitter, detector, laser, optical fiber and other product fields. It is especially suitable for high-power laser in ultraviolet to near-infrared band.
- Zinc selenide has high light transmittance; Passband 0.5-22 μ m. Especially 10.6 μ m.
- It is widely used in thermal imaging and FLIR systems. Its excellent low absorption coefficient and thermal shock resistance make it an ideal choice for high-power CO2 laser applications.
- Calcium fluoride (CaF2) can be used directly without coating in some applications with a wide spectral range. In particular, it has small absorption and high laser threshold. It is very suitable for application in excimer laser optical system. As zinc selenide is a relatively soft material, it is easy to leave scratches and dents on the surface during processing, so it is not recommended to be used in harsh environment.
- Our ZnSe lens can also provide AR coating according to specific requirements. Please take extra care when handling, installing and cleaning ZnSe lenses. In addition, for your safety, please follow all appropriate precautions, including wearing gloves when handling these lenses and washing hands thoroughly after handling.
Technical parameters
| Items | Parameters |
|---|---|
| Material | zinc selenide (ZnSe) |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-200mm ± 0.1mm |
| Center thickness tolerance | ± 0.1mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 4(high precision, we can process to 1 / 10λ) |
| Surface quality | 60/40 (we can process to 10-5 with high precision) |
| Effective caliber | ≥80% |
| Coating | multilayer antireflective film A:350-650nm B:650-1050nm C:1050-1580nm |
spectral curve
In addition, we have thousands of stock of K9 plano convex lens, biconvex lens, plano concave lens, biconvex lens, meniscus lens and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order. For details, please consult:
