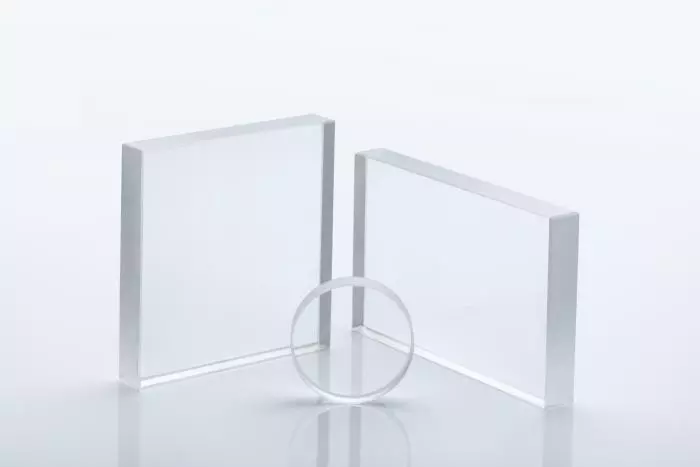

Quartz wedge beam splitter
PRODUCT CATEGORIES
- The wedge angle of the wedge-shaped beam splitter and the antireflection film on the back can reduce the ghost image interference reflected on the back surface. Ensure high precision of transmitted light and reflected light.
- Borisun optics supports the customization of wedge-shaped beam splitter with various beam splitting ratios, and the antireflection film includes UV, vis and NIR.
Technical parameters
| Items | Parameters |
|---|---|
| Material | JGS1 |
| Surface quality | 10/5- 40/20 |
| Effective aperture | 90% |
| Parallel error | 30′+-10′ |
| Quantity Accuracy | λ/8@633nm |
| Dimensional error | +0.0/-0.25mm |
| Bevel | 0.2-0.5mmX45° |
| S1 surface splitting coating | Average value of spectral ratio (R / T) ± 10% of nominal bandwidth |
| S2 surface antireflection film | Ravg ＜ 1% of the average value within the nominal bandwidth |
spectral curve
In addition, We can customize the optical beam splitter according to customer requirements or drawings.
