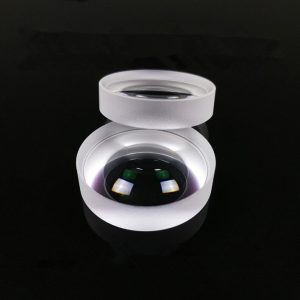

Optical focusing lens plano convex lens
PRODUCT CATEGORIES
Technical parameters
| Items | Parameters |
|---|---|
| Material | K9/n-bk7 |
| Diameter | 3-500mm |
| Thickness | customizable |
| Diameter tolerance | +-0.01-0.1mm |
| Surface accuracy | 60/40 40/20 20/10 10/5 |
| Surface quality | 10/λ 8/λ 4/λ |
| Coating | Multilayer antireflective film 350-700nm/ 400-700nm/ 650-1100nm/ 1000-1065nm/ 1050-1700nm |
Note:
The above parameters are for reference only. For detailed Plano convex lens parameters, please consult our online customer service personnel or call our company.

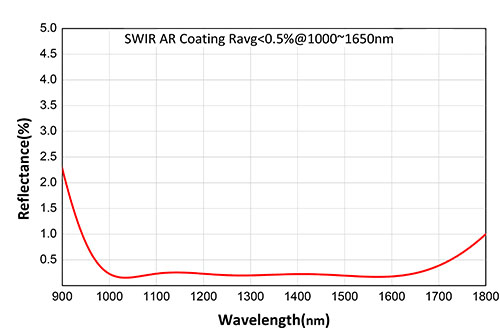

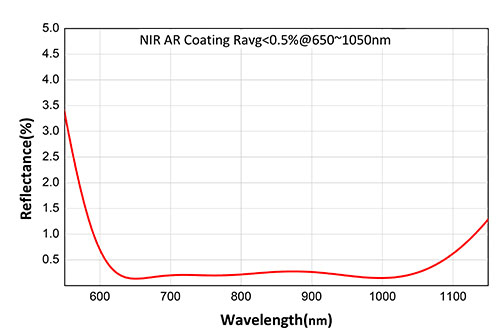

spectral curve
In addition, We can customize the optical Plano convex lens according to customer requirements or drawings.
For details, please consult:
