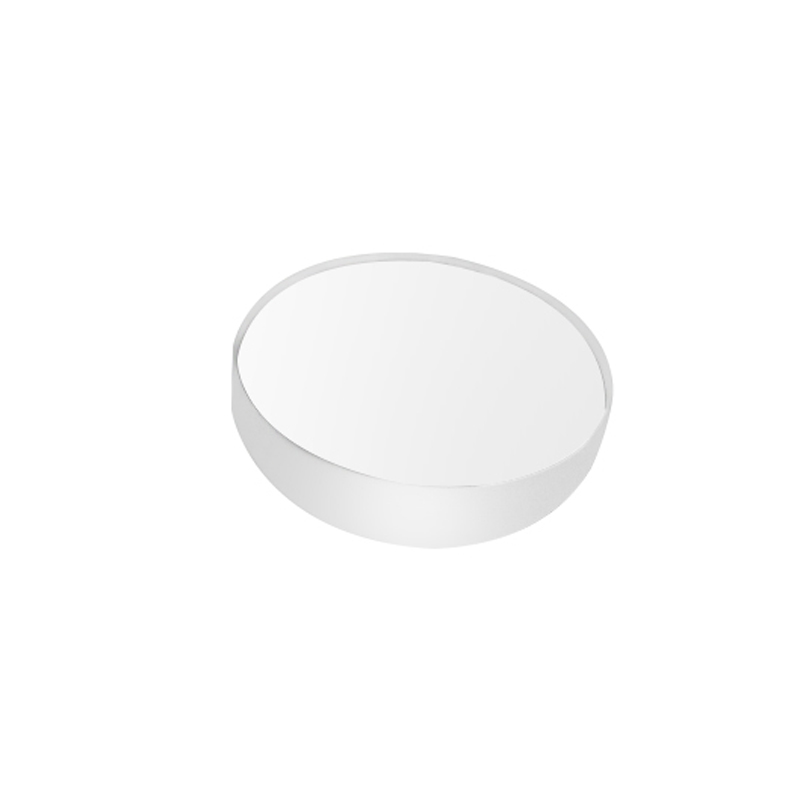

K9 wedge beam splitter
PRODUCT CATEGORIES
- The wedge angle of the wedge-shaped beam splitter and the antireflection film on the back can reduce the ghost image interference reflected on the back surface. Ensure high precision of transmitted light and reflected light.
- Borisuns optics supports the customization of wedge-shaped beam splitter with various beam splitting ratios, and the antireflection film includes UV, vis and NIR.
Technical parameters
| Items | Parameters |
|---|---|
| Material | Calcium fluoride single crystal / zinc selenide single crystal |
| Surface quality | 40/20- 60/40 |
| Effective aperture | 90% |
| Parallel error | 30′+-10′ |
| Surface Accuracy | λ/4@633nm |
| Dimensional error | +0.0/-0.25mm |
| Bevel | 0.2x45 ° |
| S1 splitting coating | 45 ° incident spectral ratio (R / T) ± 10% average @2-8 μ m |
| S2 surface antireflection coating | non |
spectral curve
In addition, We can customize the optical beam splitter according to customer requirements or drawings.
For details, please consult:
