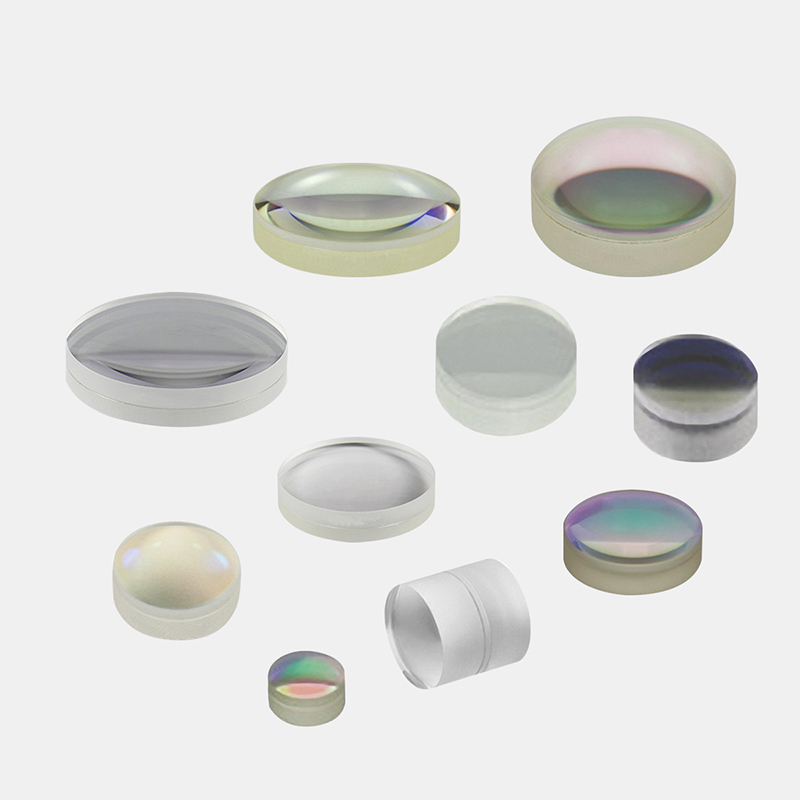

- Plano concave lens is an optical lens with one flat surface and the other concave surface. These lenses are primarily used for beam divergence or optical path adjustment, and are commonly found in optical systems, laser equipment, telescopes, microscopes, and other optical instruments.
These plano-convex lenses are also available in uncoated versions and versions with three broadband antireflective coatings: A-coating (350-700 nm), B-coating (650-1100 nm), or C-coating (1050-1700 nm).
Technical parameters with K9 Plano Concave Lens
| Substrate Material | H-K9L | Diameter | 5-800mm |
|---|---|---|---|
| Diameter Tolerance | +0.0/-0.1 mm | Thickness Tolerance | ±0.1 mm |
| Focal Length Tolerance | ±1% | Clear Aperture | >90% |
| Design Wavelength | 587.6 nm | Refractive Index | 1.5168 |
| Surface Quality | 60/40-20/10 | Surface Accuracy | λ/4- λ//8 |
| Lens Centering Error | <3' | Coated | Uncoated, VIS, NIR, SWIR |
spectral curve with H-K9L Plano Concave Lenses
H-K9L Plano Concave Lens Inventory Informations
| Diameter (mm) | Focal Length (mm) | Center Thickness (mm) | Edge Thickness (mm) | Coating |
|---|---|---|---|---|
| 6 | -9.8/-18-24 | 1/2 | 1.98/2.5/2.4 | NO/ VIS/ NIR/ SWIR |
| 9 | -27 | 2 | 2.7 | NO/ VIS/ NIR/ SWIR |
| 12.7 | -25/-30/-50 | 3/3.5 | 4.7/4.4/4.3 | NO/ VIS/ NIR/ SWIR |
| 25 | -50/-75/-100 | 3.5/4 | 6.7/5.6/5.5 | NO/ VIS/ NIR/ SWIR |
| 25.4 | -50/-75/-100/-150 | 3.5/4 | 6.9/5.6/5.6/5.05 | NO/ VIS/ NIR/ SWIR |
| 25.4 | -200/-300/-600/-1000 | 4.21/4.48/4.74/4.84 | 5 | NO/ VIS/ NIR/ SWIR |
| 50.8 | -75/-100/-150 | 3.5/4 | 13/10.7/8.3 | NO/ VIS/ NIR/ SWIR |
If you need to order in stock or custom Plano Concave lenses, please kindly contact our sales team:
info@borisuns.com/ jessie@borisuns.com
