Fused Quartz optical window
PRODUCT CATEGORIES
Quartz glass is an ideal UV material. It has high transmittance in the range of 220nm to 2500nm, good chemical stability and radiation resistance, low expansion coefficient, low fluorescence radiation and scratch resistance.

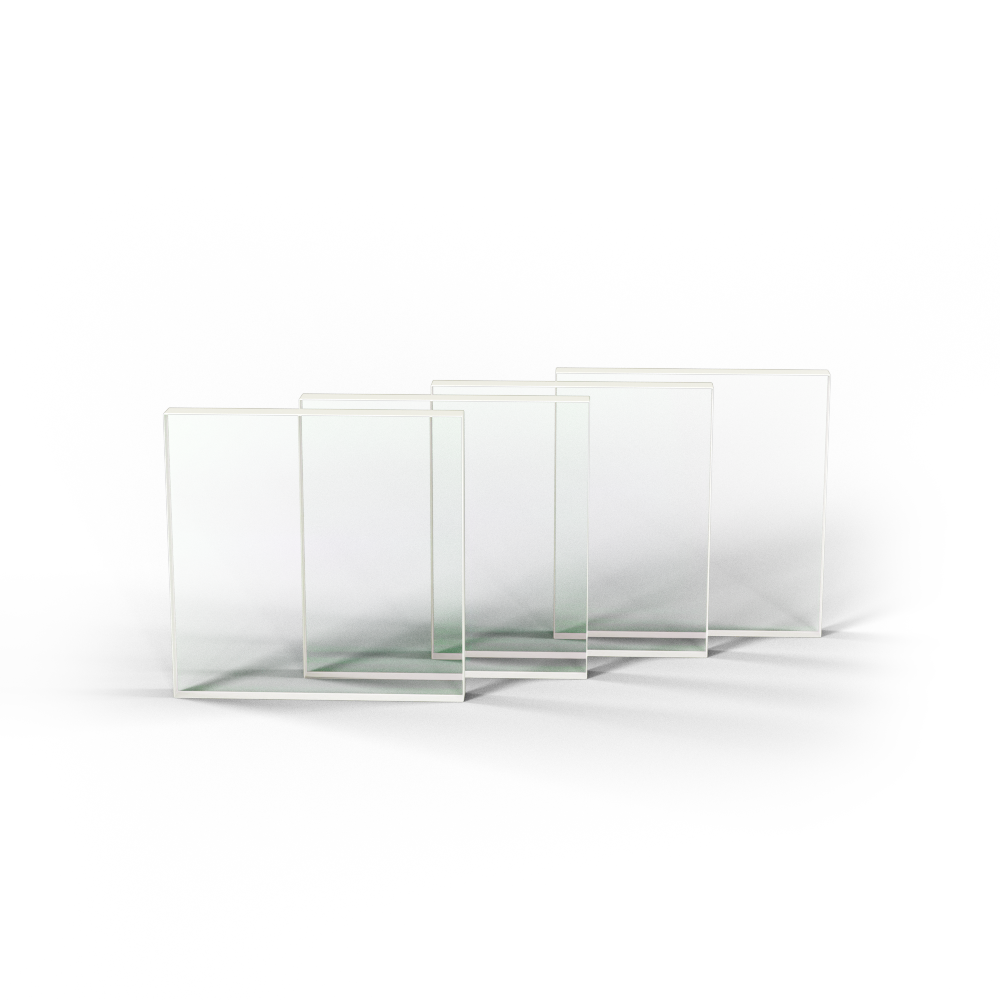

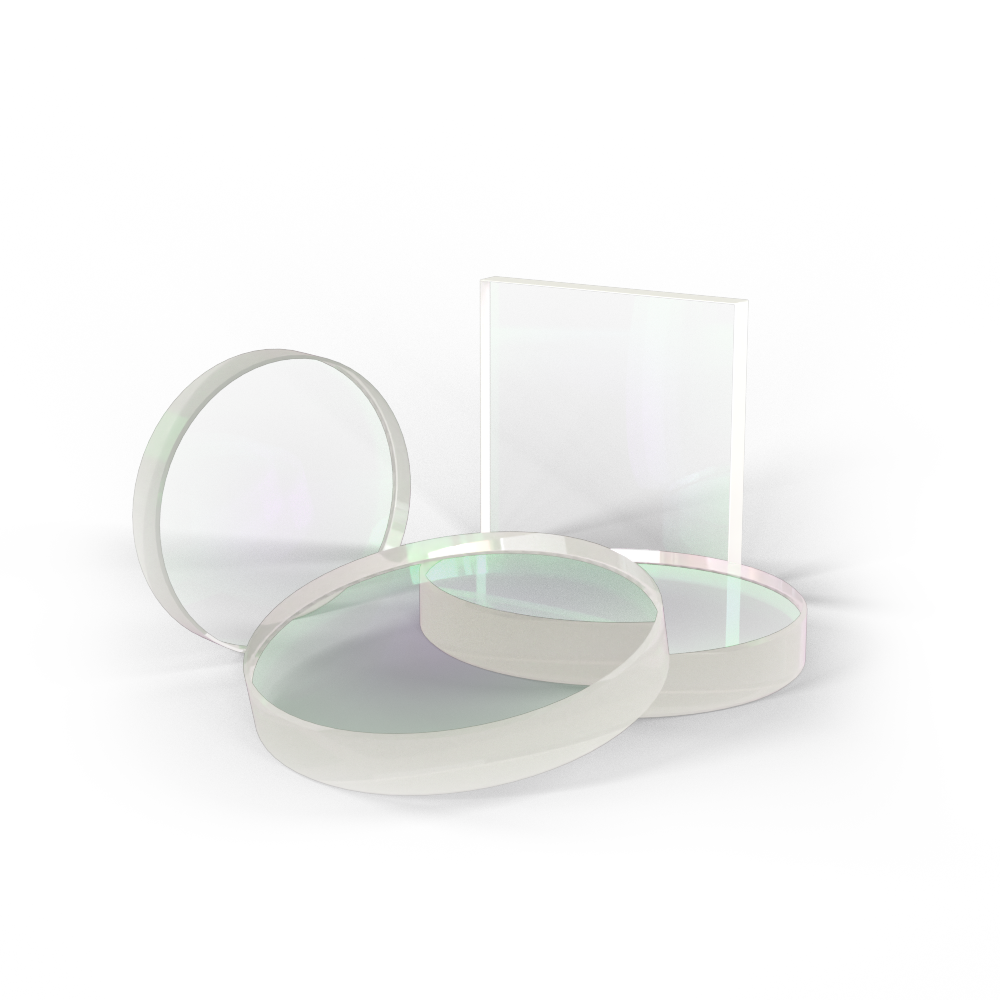

Optical window sheet is a parallel plane plate, which is usually used as a protective window for electronic sensors or detectors in the external environment.
- When selecting a window sheet, the user should consider whether the transmission properties of the material and the mechanical properties of the substrate are consistent with the application requirements. The window slice does not change the magnification of the system.
Technical parameters
| Items | Parameters |
|---|---|
| Material | JGS1 |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-300mm ± 0.1mm |
| Center thickness tolerance | ± 0.05mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 8 (high precision, we can process to 1 / 10λ) |
| Surface quality | 40/20 (we can process to 10-5 with high precision) |
| Effective caliber | ≥90% |
| Coating | UV AR Coating 250-400nm or according to the custom requirements |

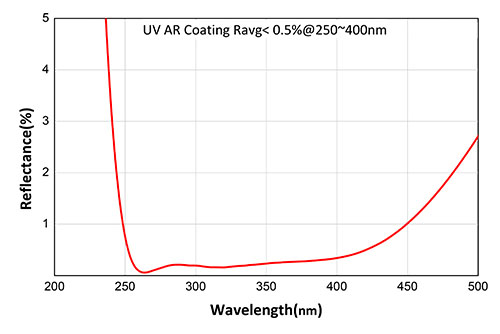

spectral curve
In addition, We can customize the optical window according to customer requirements or drawings.
For details, please consult:
