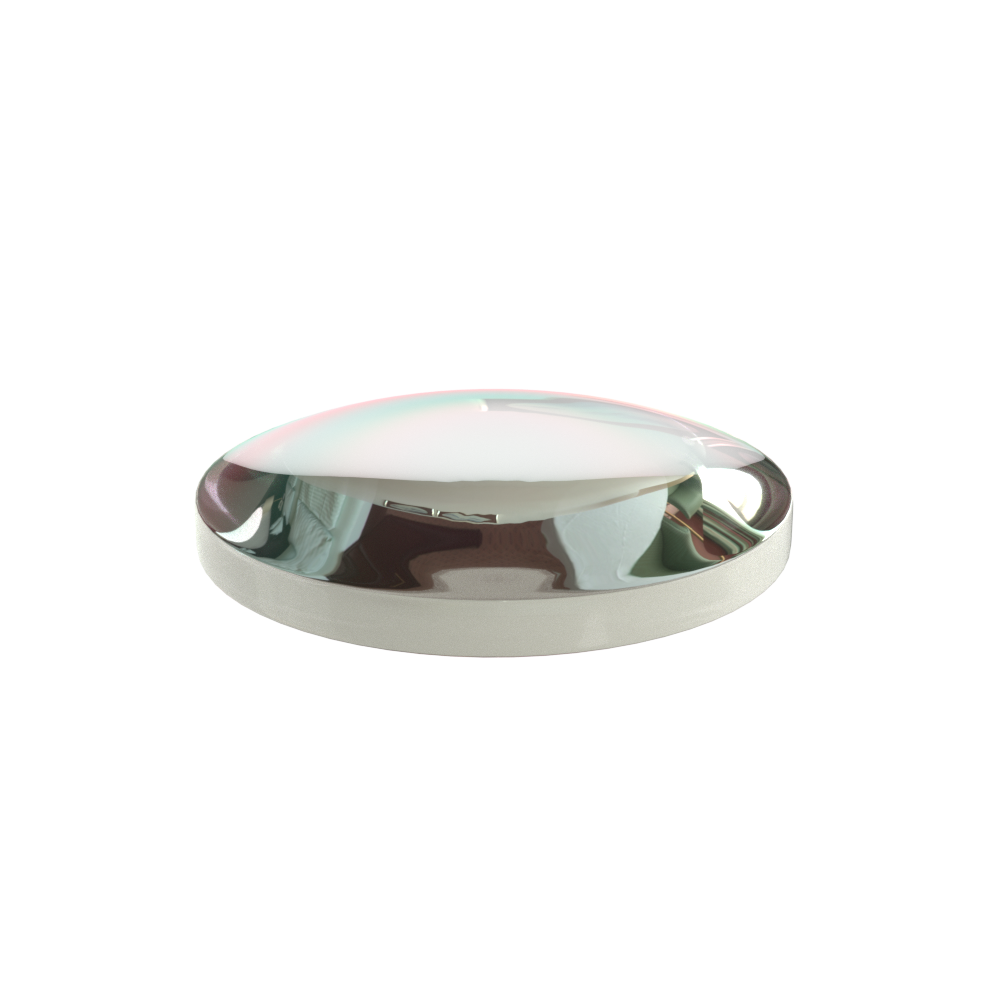

Fused quartz biconvex lens
PRODUCT CATEGORIES
- Quartz biconvex lens is very suitable for many limited imaging applications. The biconvex lens is convex spherical with the front and rear surfaces, and the radius of curvature is equal, which makes the lens symmetrical, makes the spherical aberration small, and eliminates the coma and distortion.
- Quartz biconvex spherical mirror has good transmittance from ultraviolet to near infrared (190-2200nm). Quartz material is a common optical glass for preparing optical elements
Technical parameters
| Items | Parameters |
|---|---|
| Material | UV fused quartz (JGS1, Corning 7980), infrared fused quartz (jgs3, Corning 7978) |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-300mm ± 0.1mm |
| Center thickness tolerance | ± 0.05mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 8 (high precision, we can process to 1 / 10λ) |
| Surface quality | 40/20 (we can process to 10-5 with high precision) |
| Effective caliber | ≥90% |
| Coating | UV AR Coating 250-400nm or according to customer requirements |

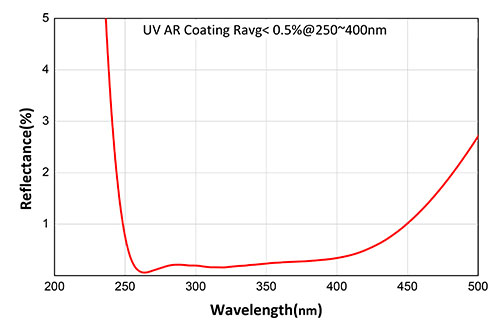

spectral curve

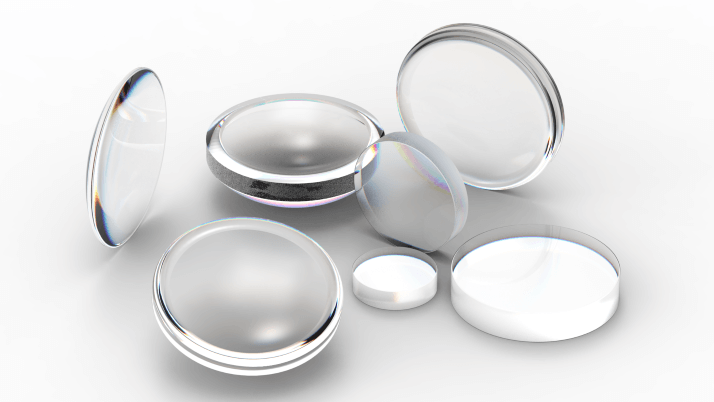

In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
For details, please consult:
