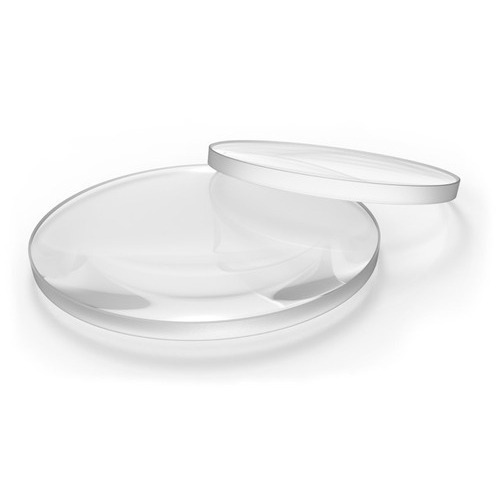

Calcium fluoride Caf2 biconvex lens
PRODUCT CATEGORIES
- The calcium fluoride biconvex lens has high transmittance within the wavelength range of 180nm-8μm (especially in the wavelength range of 350nm-7μm, the transmittance exceeds 90%) and low refractive index (for the working wavelength range of 180nm to 8.0μm, the refractive index variation range is 1.35 to 1.51). Therefore, it has high transmission even without coating.
- It is often used as a window and lens of spectrometer, and also in thermal imaging system. In addition, because of its high laser damage threshold, it has a good application in excimer lasers. Calcium fluoride has higher hardness than barium fluoride, magnesium fluoride and other similar substances
Technical parameters
| Items | Parameters |
|---|---|
| Material | CaF2 (single crystal calcium fluoride) |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-200mm ± 0.1mm |
| Center thickness tolerance | ± 0.1mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 4 |
| Surface quality | 60/40 |
| Effective caliber | ≥80% |
| Coating | IR AR Coating 3-5μm or according to custom requirements |

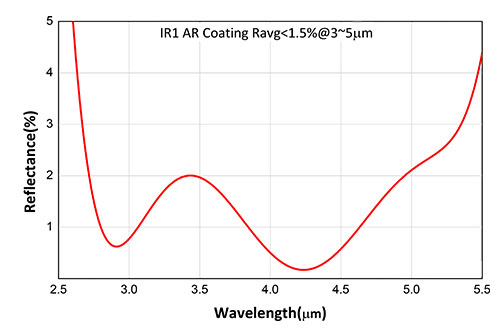

spectral curve

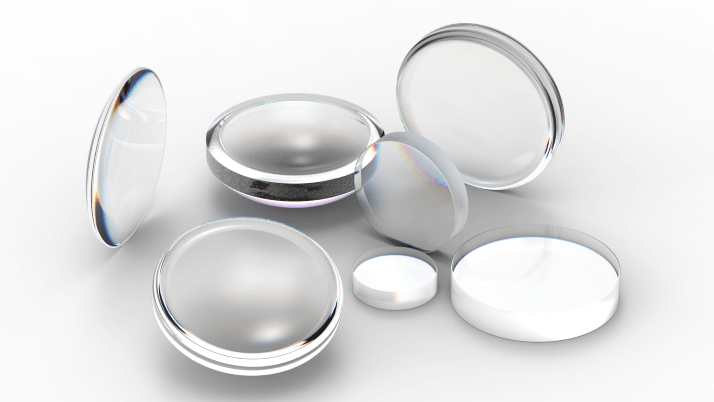

In addition, we have thousands of kinds of stock, such as calcium fluoride (CaF2) flat convex lens, calcium fluoride (CaF2) flat concave lens, calcium fluoride (CaF2) biconvex lens, calcium fluoride (CaF2) biconvex lens and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
For details, please consult:
