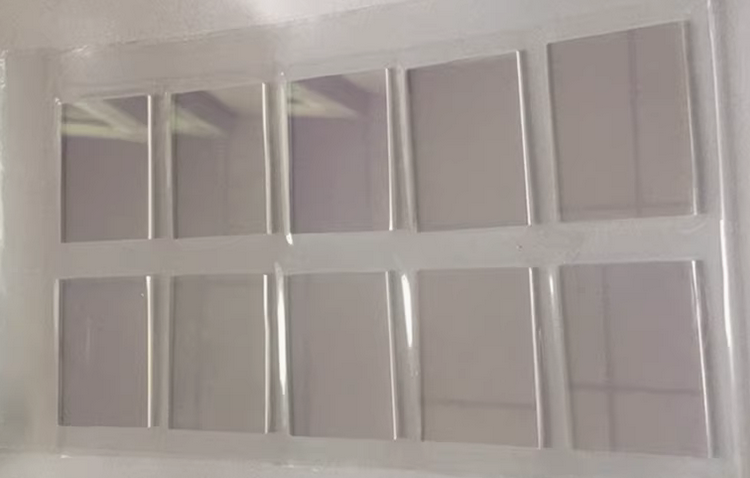

90%: 10% beam splitter
PRODUCT CATEGORIES
90%: 10% beam splitter application field: used in optical instruments, optical communication, optical fiber communication module in industrial camera, optical fiber end amplification detector, green laser module
Technical parameters
| Items | Parameters |
|---|---|
| Product index | customizable |
| Beam split wavelength | 400-1100nm Customizable |
| T:R | 99%:1%/ 98%:%2/ 95%:5%/ 90%:10%/ 80%:20%/ 70%:30%/ 60%:40%/ 50%:50% |
| Beam split error | +/-1% |
| Incident angle | 0° or 45° |
| Materials | Specially processed K9 glass or float glass |
| Surface quality | 40-20 20-10 |
Note:
The above parameters are for reference only. For detailed Beam splitter parameters, please consult our online customer service personnel or call our company.

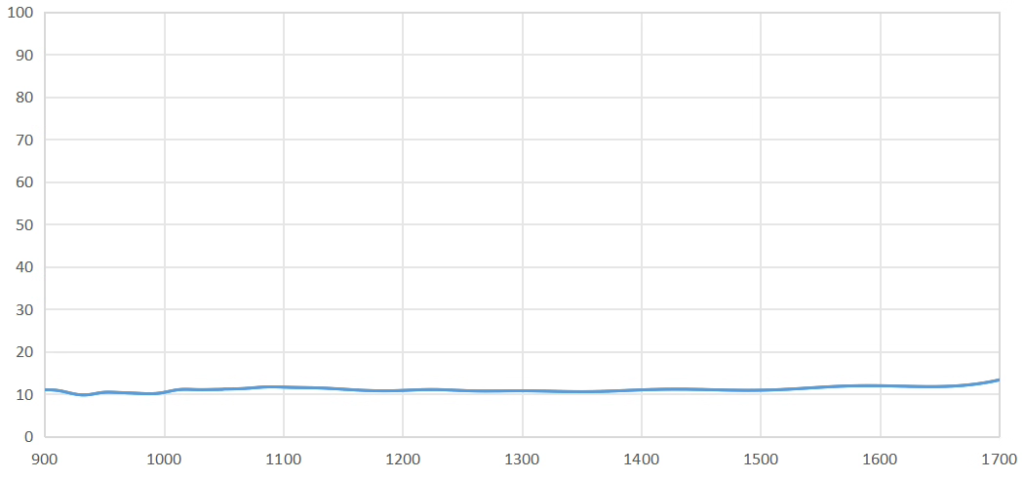

spectral curve
In addition, We can customize the optical Beam splitter according to customer requirements or drawings.
For details, please consult:
