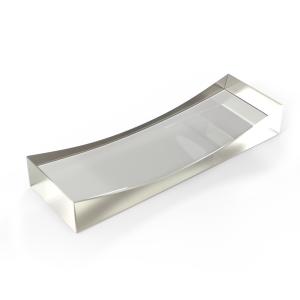

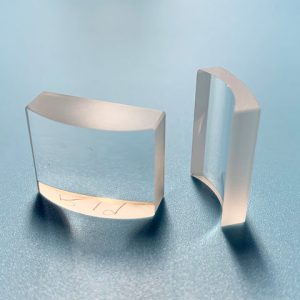

650-1050nm NIR coating optical plano concave cylindrical lens
PRODUCT CATEGORIES
Technical parameters
| Items | Parameters |
|---|---|
| Material | K9/n-bk7 |
| Diameter | 3-300mm |
| Thickness | customizable |
| Diameter tolerance | +-0.01-0.1mm |
| Surface accuracy | 60/40 40/20 20/10 10/5 |
| Surface quality | 10/λ 8/λ 4/λ |
| Coating | AR coating 400-700nm/ 650-1050nm/ 1000-1650nm |
Note:
The above parameters are for reference only. For detailed Optical plano concave cylindrical lenses parameters, please consult our online customer service personnel or call our company.
spectral curve
In addition, We can customize the Optical plano concave cylindrical lenses according to customer requirements or drawings.
For details, please consult:
