3000 – 5000nm Broadband infrared filter
PRODUCT CATEGORIES
Technical parameters
| High transmittance band | 3000-5000nm |
|---|---|
| Incident angle | 0° (according to customer requirements) |
| Half height position | 3000-5000nm+-50nm |
| Peak transmittance | >85% (according to customer demand) |
| Product size | 3mm-80mm (customizable) |
| Cut off wavelength | 1500nm-10000nm (according to the customer requirements) |
| Cut off depth | OD2 |
| Thickness | According to your requirements |
Note:
The above parameters are for reference only. For detailed Optical Filters parameters, please consult our online customer service personnel or call our company.

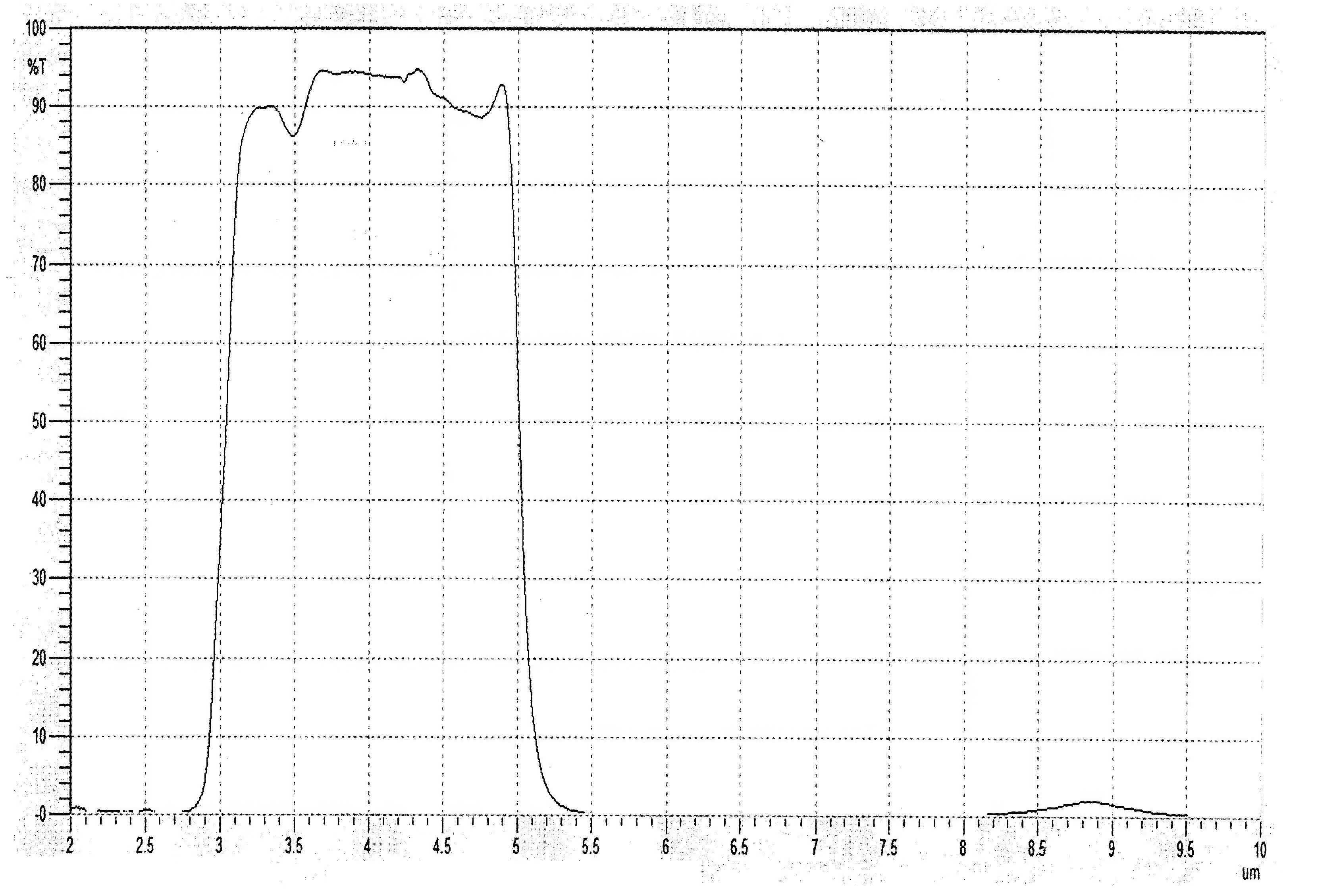

spectral curve
Related Products
In addition, We can customize the Optical Filters according to customer requirements or drawings.
For details, please consult:
