258nm narrow band filter
PRODUCT CATEGORIES
Technical parameters
| Center wavelength | 258nm+-2nm |
|---|---|
| Incident angle | 0° (according to customer requirements) |
| Half peak bandwidth | 15nm+-2nm |
| Peak transmittance | >18% (according to customer demand) |
| Product size | 3mm-80mm (customizable) |
| Cut off wavelength | 200nm-2000nm (according to the customer requirements) |
| Cut off depth | >OD3-OD6 UV-NIR |
| Thickness | According to your requirements |
Note:
The above parameters are for reference only. For detailed Optical Filters parameters, please consult our online customer service personnel or call our company.

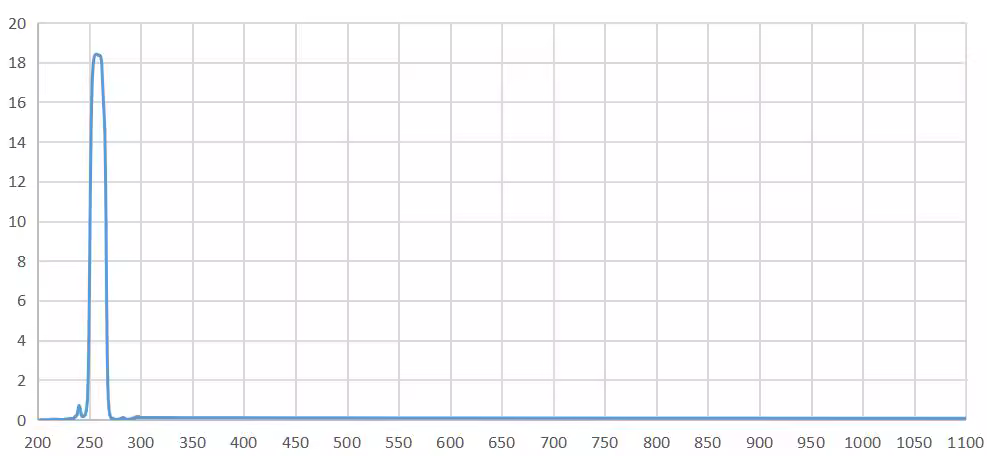

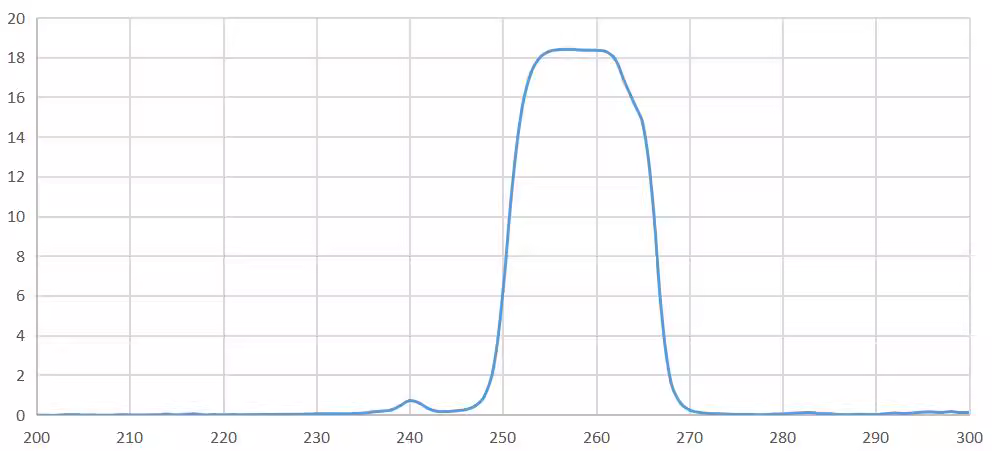

spectral curve
