225nm narrow band filter
PRODUCT CATEGORIES
Technical parameters
| Center wavelength | 225nm+-2nm |
|---|---|
| Incident angle | 0° (according to customer requirements) |
| Half peak bandwidth | 10nm+-2nm |
| Peak transmittance | >10% (according to customer demand) |
| Product size | 3mm-80mm (customizable) |
| Cut off wavelength | 200nm-2000nm (according to the customer requirements) |
| Cut off depth | >OD3-OD6 UV-NIR |
| Thickness | According to your requirements |

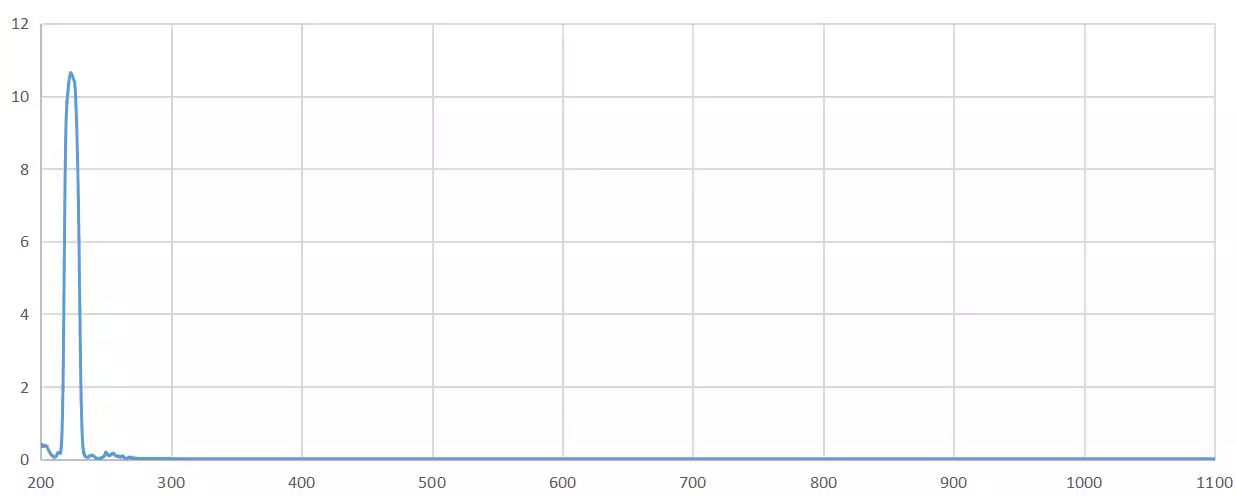

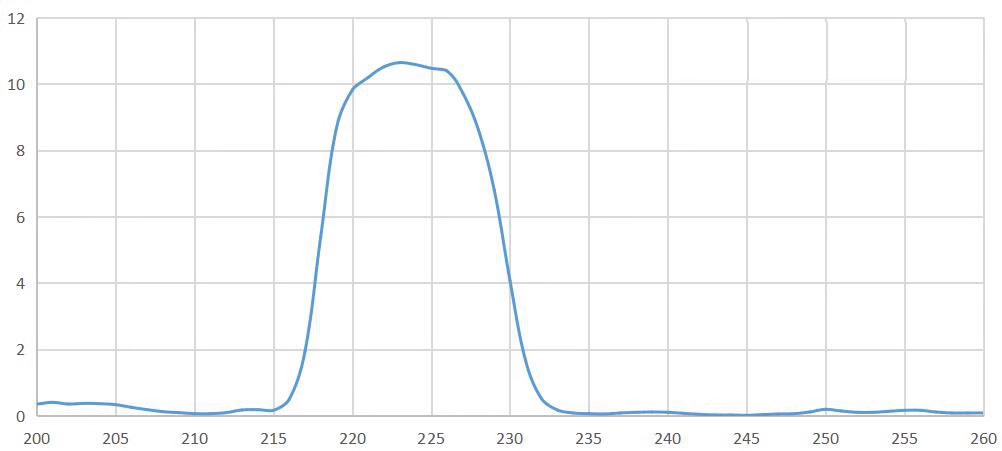

spectral curve
Note:
The above parameters are for reference only. For detailed Optical Filters parameters, please consult our online customer service personnel or call our company.
Related Products
In addition, We can customize the Optical Filters according to customer requirements or drawings.
For details, please consult:
