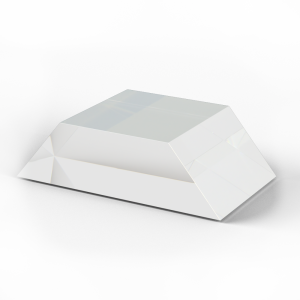

Dove prism is an image rotator. When light passes through this prism, the image is reversed by 180°. In addition, when the prism is rotated about its optical axis, the image rotation angle is twice the prism rotation angle.
Metal-coated Dove prisms can replace retroreflectors.
Basic Parameters of Dove Prism
| Substrate material | H-K9L fine annealed optical glass |
|---|---|
| Dimensional error | +0.0/-0.2 mm |
| Angular error | ±3 min |
| Surface finish | 60/40 |
| Surface accuracy | λ/4 @ 632.8nm |
| Chamfered | 0.25~0.5mm×45° |
Dove Prism Stock Parameters

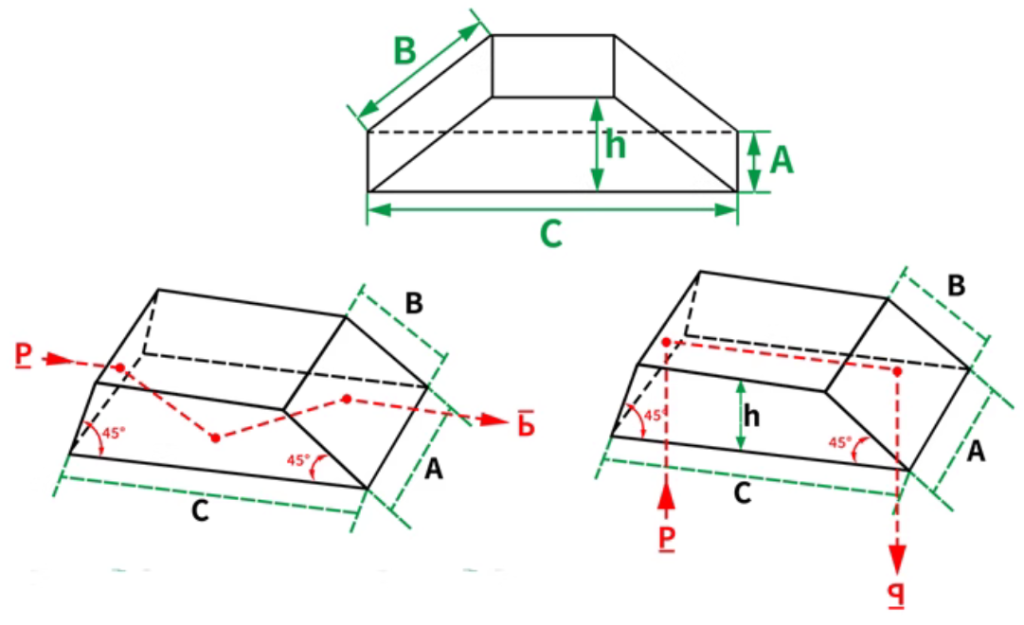

| A (mm) | B (mm) | C (mm) | H (mm) | Coated |
|---|---|---|---|---|
| 5 | 7.07 | 21.1 | 5 | No Coated or VIS Coated |
| 10 | 14.14 | 42.3 | 10 | No Coated or VIS Coated |
| 15 | 21.21 | 63.4 | 15 | No Coated or VIS Coated |
| 20 | 28.28 | 80 | 20 | No Coated or VIS Coated |
If you need to order stock or custom dove prisms, please contact our sales team:
info@borisuns.com
